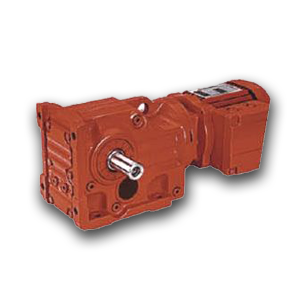

Технические характеристики серии-К, мощность – 0,55kW [1]
|
Output speed n2 [r/min] |
Output torque Ta [N*m] |
Ratio i |
Permitted overhung load FR2 [N] |
Service factor fB |
Model |
|
|---|---|---|---|---|---|---|
|
0.55kW |
||||||
|
0.08 0.10 0.10 0.12 0.19 |
55900 46500 42500 37400 23900 |
16978 14272 13116 11647 7343 |
179800 190000 190000 190000 190000 |
0.90 1.10 1.20 1.35 2.1 |
K |
187R97 D80K4 |
|
0.12 0.13 0.16 1.21 0.25 0.33 |
38400 33800 28100 21400 17200 13200 |
11573 10264 8628 6562 5355 4097 |
150000 150000 150000 150000 150000 150000 |
0.85 0.95 1.15 1.50 1.85 2.4 |
K |
167R97 D80K4 |
|
0.20 0.23 0.34 0.45 |
22400 19300 13000 9940 |
6881 5931 3979 3051 |
109700 111500 114400 115300 |
0.80 0.95 1.40 1.80 |
K KF KA KAF |
157R97 D80K4 157R97 D80K4 157R97 D80K4 157R97 D80K4 |
|
0.31 0.35 0.41 0.45 0.52 |
14900 13000 11100 10000 8630 |
4423 3889 3311 3009 2607 |
76200 79200 80200 80700 81200 |
0.85 1.00 1.20 1.30 1.50 |
K KF KA KAF |
127R77 D80K4 127R77 D80K4 127R77 D80K4 127R77 D80K4 |
|
0.71 0.77 0.88 1.0 1.2 1.3 |
6560 5980 5220 4570 3990 3490 |
1926 1757 1541 1342 1177 1025 |
81900 82100 82300 82400 82500 82600 |
2.0 2.2 2.5 2.8 3.3 3.7 |
K KF KA KAF |
127R77 D80K4 127R77 D80K4 127R77 D80K4 127R77 D80K4 |
|
0.46 0.52 0.59 0.70 |
10100 8770 7690 6520 |
2977 2599 2286 1939 |
65000 65000 65000 65000 |
0.80 0.90 1.05 1.25 |
K KF KA KAF |
107R77 D80K4 107R77 D80K4 107R77 D80K4 107R77 D80K4 |
|
0.79 0.87 1.0 1.2 1.3 1.5 1.7 2.0 2.2 |
5850 5310 4570 3990 3450 3000 2700 2360 2050 |
1713 1554 1336 1166 1030 904 793 696 615 |
65000 65000 65000 65000 65000 65000 65000 65000 65000 |
1.35 1.50 1.75 2.0 2.3 2.7 3.0 3.4 3.9 |
K KF KA KAF |
107R77 D80K4 107R77 D80K4 107R77 D80K4 107R77 D80K4 |
|
0.95 1.1 1.2 1.4 1.6 1.8 2.1 2.4 2.7 3.1 3.6 4.5 |
4880 4380 3820 3320 2960 2520 2220 1970 1700 1470 1300 1040 |
1430 1261 1102 957 855 743 652 573 504 437 382 305 |
40000 40000 40000 40000 40000 40000 40000 40000 40000 40000 40000 40000 |
0.90 1.00 1.15 1.30 1.45 1.70 1.95 2.2 2.5 2.9 3.3 4.1 |
K KF KA KAF |
97 R57 D80K4 97 R57 D80K4 97 R57 D80K4 97 R57 D80K4 |
|
1.4 1.6 1.9 2.1 2.4 2.9 3.2 3.7 4.1 4.6 5.4 5.8 6.8 |
3260 2860 2480 2190 1920 1620 1450 1260 1110 990 850 800 680 |
951 837 726 638 562 474 426 373 330 294 250 236 201 |
26500 27100 27600 27900 28100 28400 28500 28600 28700 28800 28900 28900 28900 |
0.85 0.95 1.10 1.25 1.40 1.65 1.85 2.1 2.4 2.7 3.2 3.4 4.0 |
K KF KA KAF |
87 R57 D80K4 87 R57 D80K4 87 R57 D80K4 87 R57 D80K4 |
|
2.5 2.8 3.2 3.7 4.2 4.7 5.4 6.2 7.0 7.8 8.8 |
1900 1670 1470 1270 1130 1000 870 760 670 600 530 |
552 485 428 367 328 292 252 221 195 175 154 |
5780 14500 15900 17100 17800 18300 18800 19100 19300 19500 19600 |
0.80 0.95 1.05 1.20 1.35 1.55 1.80 2.0 2.3 2.6 2.9 |
K KF KA KAF |
77 R37 D80K4 77 R37 D80K4 77 R37 D80K4 77 R37 D80K4 |
|
Output speed n2 [r/min] |
Output torque Ta [N*m] |
Ratio i |
Permitted overhung load FR2 [N] |
Service factor fB |
Model |
|
|---|---|---|---|---|---|---|
|
0.55kW |
||||||
|
4.9 5.5 6.2 7.1 8.2 9.4 11 |
960 840 745 660 570 495 420 |
279 246 217 191 166 144 122 |
7360 10100 10900 11500 12100 12400 12700 |
0.85 0.95 1.10 1.25 1.45 1.65 1.95 |
K KF KA KAF |
67R37 D80K4 67R37 D80K4 67R37 D80K4 67R37 D80K4 |
|
7.1 8.2 9.4 11 12 14 |
660 575 495 445 380 335 |
192 166 145 129 111 97 |
5180 7850 8430 8680 8970 9150 |
0.90 1.05 1.20 1.35 1.60 1.80 |
K KF KA KAF |
57R37 D80K4 57R37 D80K4 57R37 D80K4 57R37 D80K4 |
|
3.9 4.1 4.6 |
1350 1720 1140 |
174.19 164.39 147.32 |
28600 28600 28700 |
2.0 2.1 2.4 |
K KF KA KAF |
87 D90L8 87 D90L8 87 D90L8 87 D90L8 |
|
4.6 5.2 5.5 6.1 |
1150 1020 960 860 |
197.37 174.19 164.34 147.32 |
28700 28800 28800 28900 |
2.3 2.7 2.8 3.1 |
K KF KA KAF |
87 D80N6 87 D80N6 87 D80N6 87 D80N6 |
|
5.0 5.3 6.0 7.0 |
1040 990 880 750 |
135.28 128.52 113.56 97.05 |
18100 18300 18700 19100 |
1.50 1.55 1.75 2.1 |
K KF KA KAF |
77 D90L8 77 D90L8 77 D90L8 77 D90L8 |
|
5.8 6.7 7.0 7.9 |
900 790 750 665 |
154.02 132.28 128.52 113.56 |
18700 19000 19100 19400 |
1.70 1.95 2.1 2.3 |
K KF KA KAF |
77 D80N6 77 D80N6 77 D80N6 77 D80N6 |
|
8.8 10 11 12 14 |
595 520 495 440 375 |
154.02 132.28 128.52 113.56 97.05 |
19500 19700 19700 19800 19900 |
2.6 3.0 3.1 3.5 4.1 |
K KF KA KAF |
77 D80K4 77 D80K4 77 D80K4 77 D80K4 |
|
7.3 8.3 8.8 10 12 |
720 630 600 525 445 |
123.54 108.03 102.62 90.04 76.37 |
11100 11700 11900 12300 12600 |
1.15 1.30 1.35 1.55 1.85 |
K KF KA KAF |
67 D80N6 67 D80N6 67 D80N6 67 D80N6 |
|
11 13 15 18 |
475 415 350 295 |
123.54 108.03 90.04 76.37 |
12500 12800 13000 13000 |
1.70 1.95 2.4 2.8 |
K KF KA KAF |
67 D80K4 67 D80K4 67 D80K4 67 D80K4 |
|
8.3 8.8 10 12 13 15 16 |
630 600 525 445 405 355 335 |
108.29 102.88 90.26 76.56 69.12 60.81 57.42 |
7360 7630 8220 8670 8870 9070 9150 |
0.95 1.00 1.15 1.35 1.50 1.70 1.80 |
K KF KA KAF |
57 D80N6 57 D80N6 57 D80N6 57 D80N6 |
|
11 13 13 15 18 20 22 24 |
480 420 395 350 295 265 235 220 |
123.85 108.29 102.88 90.26 76.58 69.12 60.81 57.42 |
8520 8800 8890 9100 9300 9410 9520 9560 |
1.25 1.40 1.50 1.70 2.0 2.2 2.6 2.7 |
K KF KA KAF |
57 D80K4 57 D80K4 57 D80K4 57 D80K4 |
|
13 15 16 18 19 |
405 350 330 290 270 |
104.37 90.86 85.12 75.20 69.84 |
5880 6550 6790 7150 7310 |
1.00 1.15 1.20 1.40 1.50 |
K KF KA KAF |
47 D80K4 47 D80K4 47 D80K4 47 D80K4 |
|
21 24 28 30 |
245 220 189 178 |
63.30 56.80 48.95 46.03 |
7500 7660 7830 7880 |
1.65 1.80 2.1 2.2 |
K KF KA KAF |
47 D80K4 47 D80K4 47 D80K4 47 D80K4 |
|
23 27 31 36 38 45 47 54 58 67 79 89 104 112 130 153 171 200 214 254 |
225 192 172 147 137 116 111 97 90 78 66 59 51 47 41 34 31 26 25 21 |
58.60 49.79 44.46 37.97 35.57 29.96 28.83 24.99 23.36 20.19 17.15 15.31 13.08 12.14 10.49 8.91 7.96 6.80 6.37 5.36 |
4850 4790 4740 4640 4600 4470 4440 4320 4260 4130 3980 3880 3730 3660 3520 3370 3270 3130 3070 2920 |
0.90 1.05 1.15 1.35 1.45 1.75 1.80 2.1 2.2 2.4 2.7 3.0 3.3 3.4 4.0 4.7 5.1 5.7 5.9 6.8 |
K KF KA KAF |
37 D80K4 37 D80K4 37 D80K4 37 D80K4 |
